Pompa Variabel Kecepatan 8 Inch 75hp Sumur Dalam 2.2kw - Daya 63kw

Deskripsi Produk

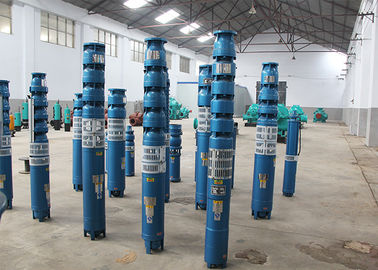

8 inch submersible pump performance range:

• Pump diameter: 8 inch irrigation submersible pump
• Flow: 9-120m3/h
• Head: 14-465m
• Power: 2.2kw-63kw submersible pump
• Voltage: 380v/460v/660v or as per request
• Frequency: 3 phase 50hz/60hz
• Material: cast iron/stainless steel

8 inch submersible pump applications:

• farmland irrigation
• fountain project
• spray irrigation
• drawing water from wells
• water supply and drainage system for industrial or civil buildings
• water drawing system in hills and mountain areas
• sea water, salt water

Note: mateched submersible pump parts we also have, such as control cabinet, cable, etc.

Submersible pump control cabinet:

Submersible pump frequency converter:



8 inch submersible pump parameters:

(cast iron or stainless steel 304/316/316l/duplex stainless/super duplex stainless steel/ss904l and 380v/440v/460v/480v/600v/ 660v/1140v. Please kindly choose submersible pump type or send inquiry to enquiry02@apkpump.com /Whatsapp: +86 17537187726.)



Diameter	Model	Power		Flow range	Head range
Inch(")	QJ	kw	hp	m3/h	m
8	200QJ15-26/2	2.2	3	13-17	23-29
8	200QJ15-54/4	4	5	13-17	34-46
8	200QJ15-65/5	5.5	7	13-17	55-75
8	200QJ15-81/6	7.5	10	13-17	68-92
8	200QJ20-93/7	10	14	18-22	79-107
8	200QJ20-121/19	13	18	18-22	103-140
8	200QJ20-148/11	15	20	18-22	126-170
8	200QJ20-175/13	18.5	25	18-22	150-210
8	200QJ20-189/14	22	30	18-22	160-217
8	200QJ20-283/21	30	40	18-22	240-325
8	200QJ20-338/25	37	50	18-22	287-388
8	200QJ20-405/30	45	60	18-22	345-465
8	200QJ50-26/2	5.5	7	46-54	21-31
8	200QJ50-52/4	13	18	46-54	46-62
8	200QJ50-78/6	18.5	25	46-54	60-90
8	200QJ50-91/7	22	30	46-54	73-110
8	200QJ50-135/9	30	40	46-54	116-162
8	200QQJ63-84/6	25	35	58-68	72-96
8	200QJ80-44/4	15	20	74-86	37-50
8	200QJ80-66/6	22	30	74-86	56-75
8	200QJ100-15/1	7.5	10	80-120	12-16
8	200QJ100-75/5	37	50	80-120	872-77
8	200QJ100-105/7	45	60	80-120	102-107
